Description

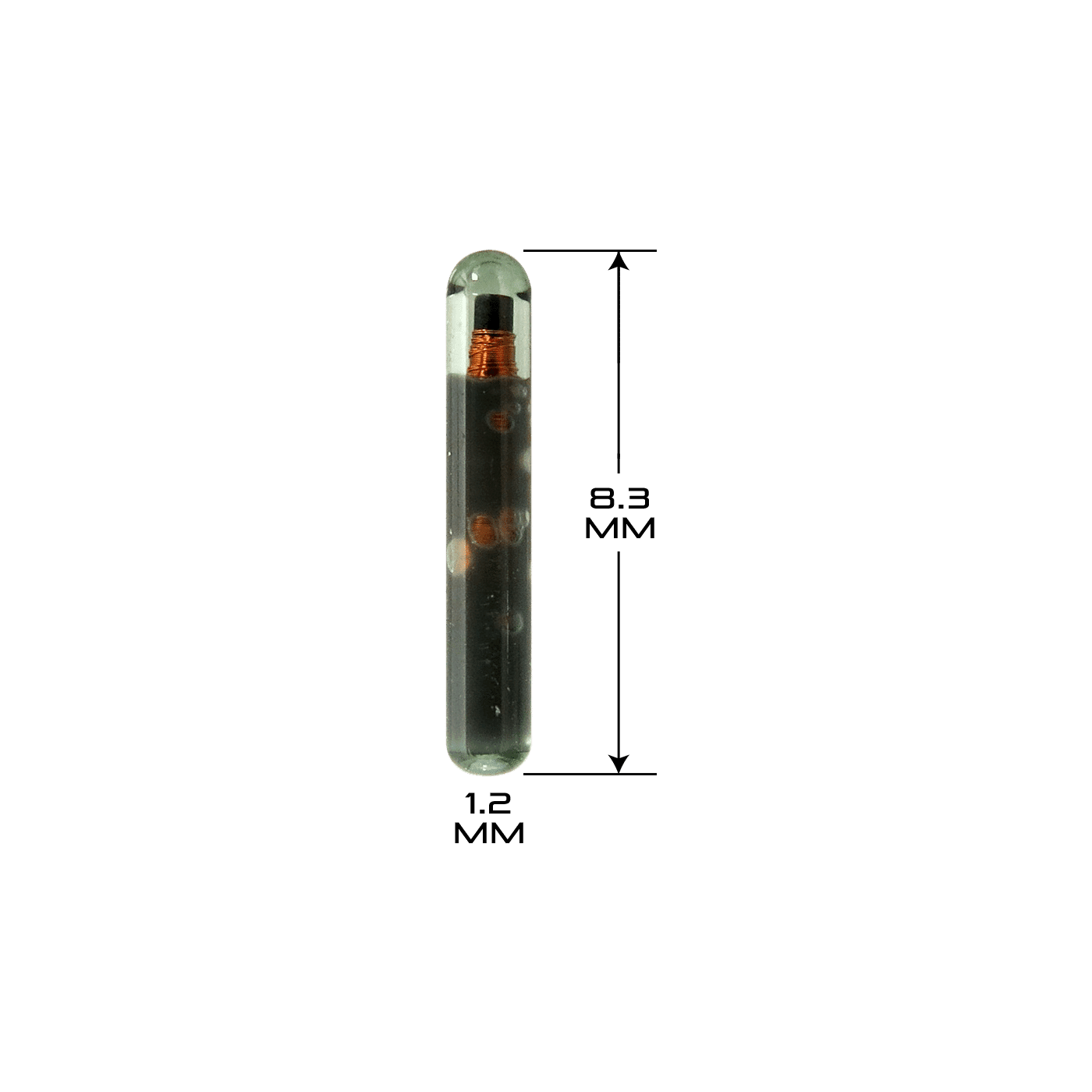

The UID MiniMax Programmable Microchip (UC-1283) is the perfect choice for reliable identification of very small mice (as young as 10 days old). With dimensions of just 1.2 mm in diameter and 8.3 mm in length, this transponder stands as the smallest programmable microchip available on the market today.

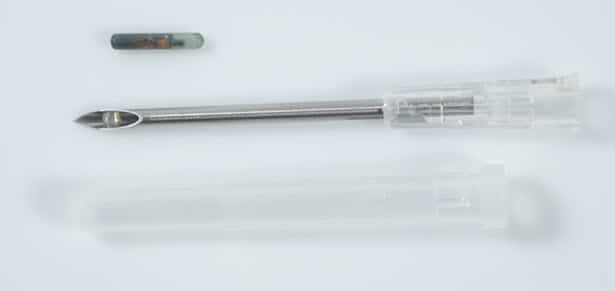

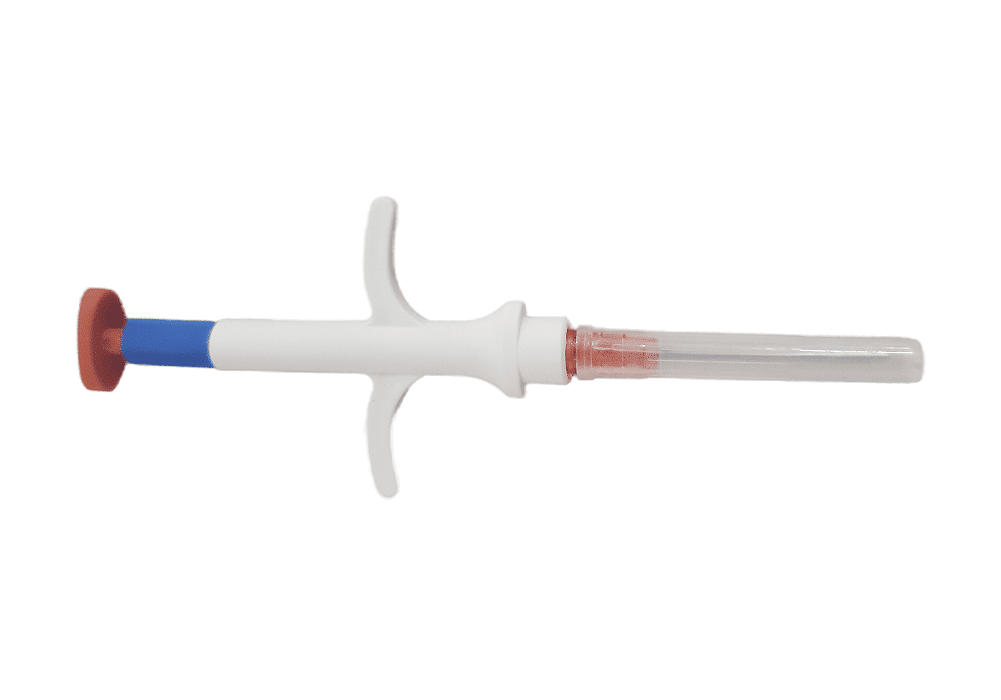

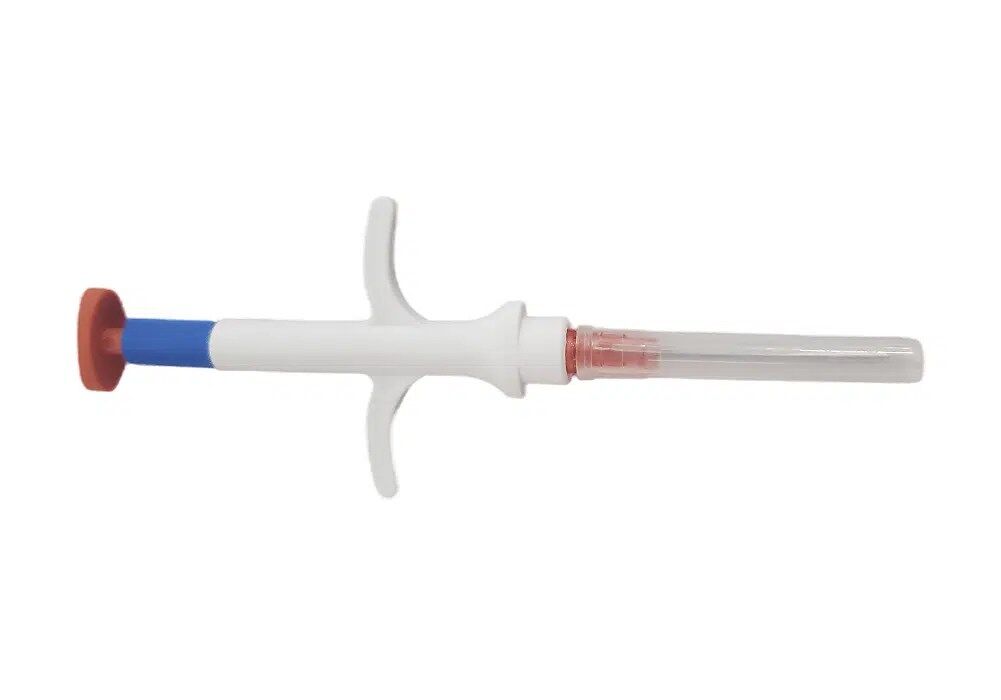

Each microchip is individually packaged in a sterile, 17G disposable needle, guaranteeing a swift, hassle-free, and safe implantation process. It is designed to work seamlessly with a wide range of reusable UID injectors, offering flexibility and convenience. Additionally, the MiniMax is also available in sterile disposable injectors for your convenience.
The MiniMax microchip grants you the power to program up to 16 alphanumeric characters, providing you with extensive read/write programmable capabilities. This unique feature empowers researchers to store valuable “human-readable” data on the microchip, such as study numbers, genotypes, or animal dates of birth. MiniMax microchips can be easily programmed in the needle prior to insertion using the UPS-60 Chip Provisioning Station, or even after implantation within the animal using the UID UBS-200L Base Station reader.
Our UID MiniMax transponders are designed to be fail-proof, ensuring they retain their programmed information permanently without the risk of data loss, unlike other providers’ products.
Features and Specifications
- Applications: Animal identification
- Species: Small mice (including 10 day old neonate mice)

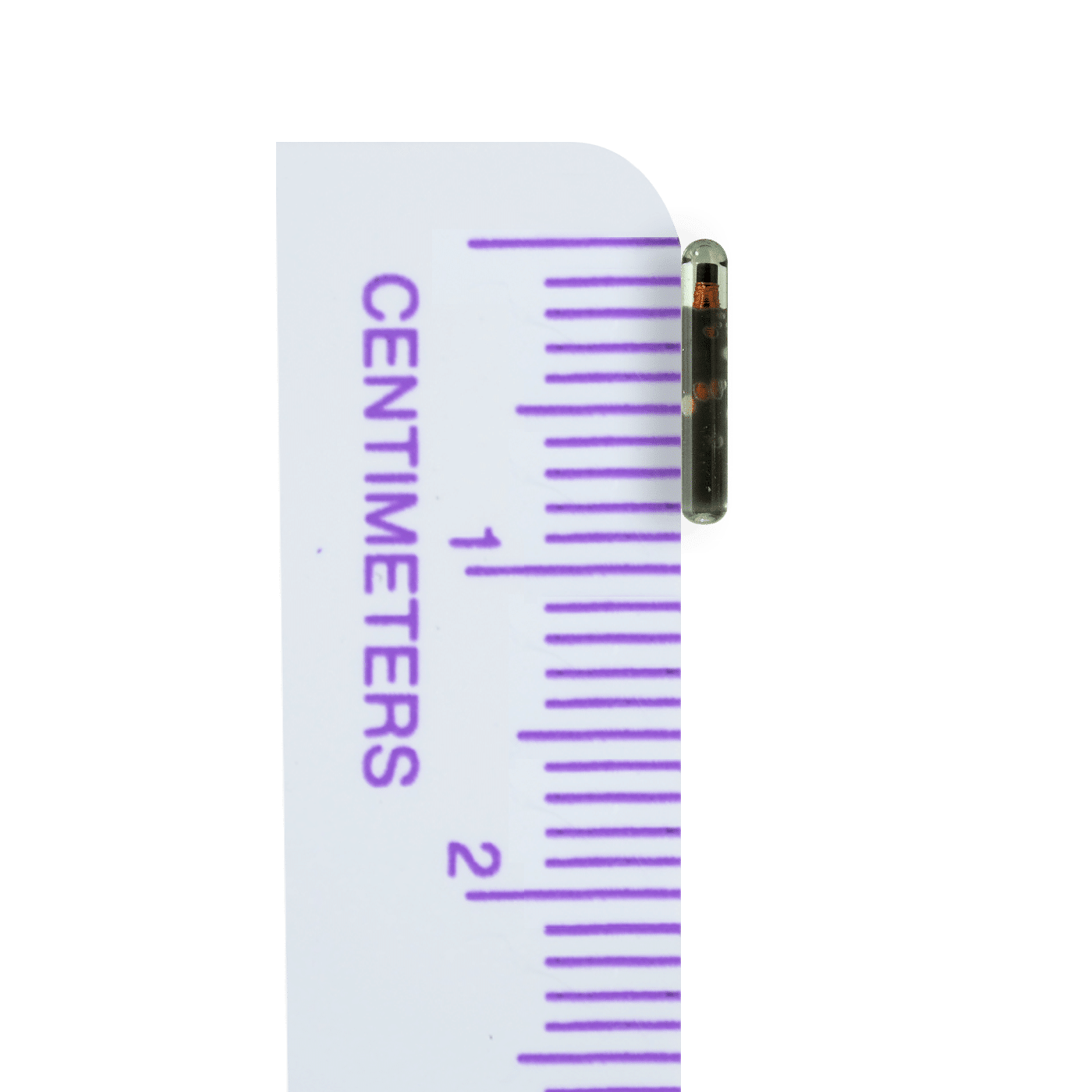

- Size: 1.23mm x 8.3mm
- Weight: 0.026g
- Volume: 9.86 cubic millimeter
- Implantable: IP, SQ in small mice (as young as PND 10)
- Unique ID: 100% unique 8-digit, non-repeating, alphanumeric RFID code. This code is permanent; it cannot be changed or deleted.
- Battery-free transponder
- Programmable: 1-16 alphanumeric characters for programming (read/write) with customized study information. Can be programmed in the needle prior to implantation or after insertion in the animal. The programmed information can only be removed or changed with the UID Programming software.
- Biocompatible: Glass encapsulated (BIO GLASS 8625)
- Operating Frequency: 134.2 kHz
- Read Distance: 3 cm to 7 cm (depending on reader)
- Availability: Provided individually packaged in ETO sterile blister pack, or disposable injector.
- Availability: Provided in sharp, triple ground cannula (17G; 1.45mm O.D.) for easy insertion
- Compatible Readers: All UID Readers, including URH-1HP Handheld Reader, Desktop Reader, UBS-200 Base Station
- Compatible injectors: All UID injectors, including UPGI-Q Pistol Grip Injector, Syringe Injector
Contact UID at info@uidevices.com or 224.444.8484 for more information.
For laboratory research use only. NOT for pet or wildlife use (Refer to our ISO standard transponders for these applications).
