Home-cage monitoring

AnyCage Lite reader with rectangular antenna, pre-paired and ready to mount.

An AnyCage Lite reader shipped with the 2″ × 5″ rectangular antenna already paired — the configuration most labs want for standard shoebox cages. Side-mount the antenna with the included magnetic clamp, plug the reader into a PC running DataCollector, and start streaming per-animal ID and body temperature without handling the cohort.

  • $300
  • 2″ × 5″ antenna
  • UID UCT-2112 temperature microchip
Request a quote View specs
AnyCage Lite reader with rectangular antenna, pre-paired and ready to mount.

What's in the box

A single-reader, single-antenna kit for adding one cage to an existing AnyCage Lite deployment — or for piloting the system on one cohort before scaling up. UCT-2112 temperature tags and home cages are sold separately.

  • (1) AnyCage Lite Reader

    (1) AnyCage Lite Reader

    Scans for the implanted UID UCT-2112 temperature microchip continuously and reports ID and body temperature to DataCollector over USB.

  • (1) 2″ × 5″ Rectangular Antenna

    (1) 2″ × 5″ Rectangular Antenna

    Slim side-mount antenna shaped for standard shoebox cages. Magnetic clamp lets you reposition without tools.

  • (1) 1 m Cable

    (1) 1 m Cable

    Connects the antenna to the reader. Length keeps the reader clear of the cage rack.

  • (1) Magnetic Clamp Mount

    (1) Magnetic Clamp Mount

    Tool-free attachment to cage surfaces. Reposition or transfer the antenna between cages without rebuilding the setup.

Specifications

Kit

Reader
(1) AnyCage Lite Reader
Antenna
(1) 2″ × 5″ rectangular
Cable
1 m
Mount
Magnetic clamp (included)
Cage capacity
1 home cage per reader

Reading

Standard
UID encoded 134.2 kHz
Compatible tag
UCT-2112 (ID + body temperature)
Host connection
USB to PC running DataCollector

Pricing

Unit price
$300
Multi-cage / volume
Contact for quote
Works with

You'll likely also need

Frequently asked questions

  • Which AnyCage system does this work with?

    AnyCage Lite. The reader is the Lite generation and pairs with the AnyCage Lite 4-Position Cradle/Hub or runs directly to a PC over USB. It does not replace an AnyCage Plus or Mouse Matrix reader.

  • What cages does the 2″ × 5″ rectangular antenna fit?

    Standard shoebox cages. The slim rectangular footprint sits flush against the cage wall and the magnetic clamp holds it without modifying the cage. If you're running a non-standard cage geometry, contact us with dimensions before ordering.

  • Are tags included?

    No. UCT-2112 temperature tags and the implant injector are sold separately. If you're starting from zero, the AnyCage Lite Starter Kit bundles four reader/antenna pairs plus 24 tags and an injector.

  • Can I run multiple of these on one PC?

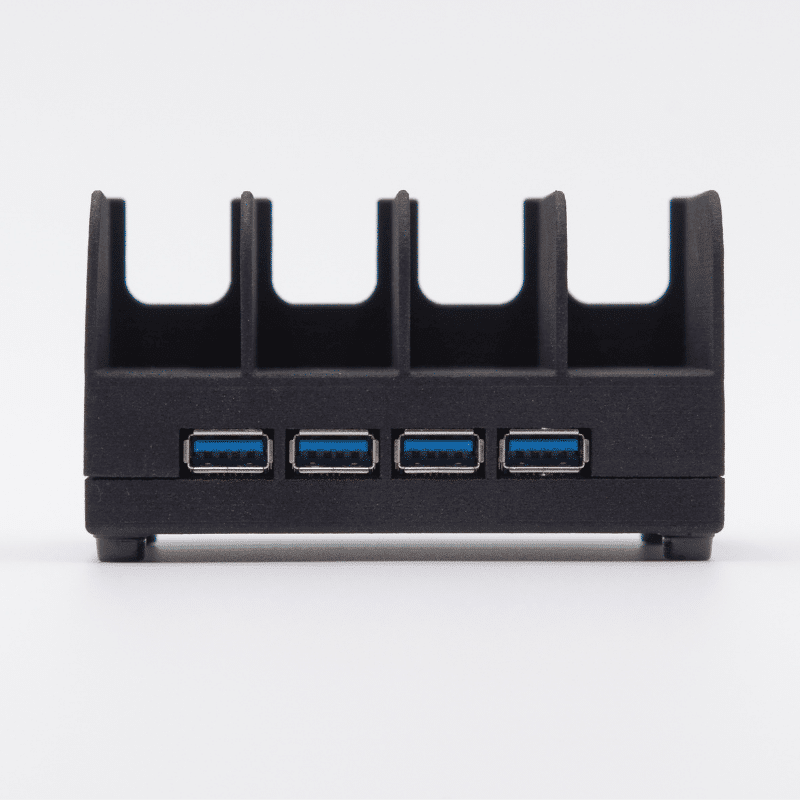

    Yes. Add the AnyCage Lite 4-Position Cradle/Hub to power and aggregate up to four readers into a single DataCollector instance. No license change required.

Expanding an AnyCage Lite cohort?

Tell us your cage format and how many positions you're adding. We'll confirm the antenna shape fits and quote readers, tags, and cradles together.
