UBS-200L
The UBS-200L base station is our most popular desktop reader. It has a built-in LCD screen that shows unique ID and temperature on each read. When paired with PiSuite, the UBS-200L can program human-readable data onto a microchip, even after the chip has been implanted.
- Most popular desktop reader
- ID on the built-in screen
- Programs chips with PiSuite

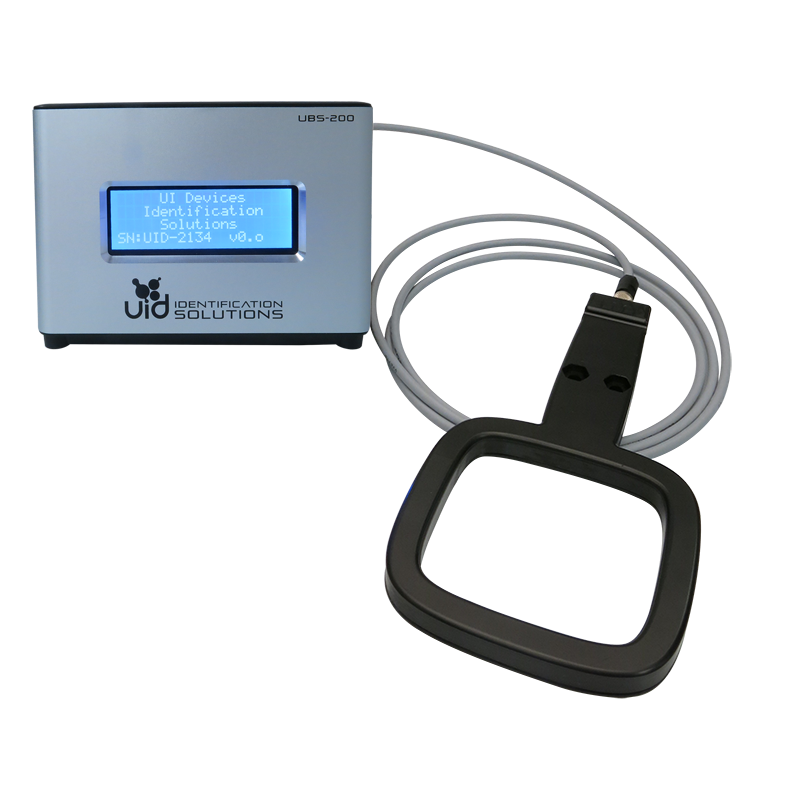

One Station to Read, Verify, and Program
The UBS-200L gives a procedure table, sample station, or mobile cart a dedicated place to scan. The base station has two antenna ports, internal and external, that are switchable at the unit. It comes with a 6' attachable antenna wand for added scanning flexibility, and if that doesn't fit the setup, you can connect one of our other antenna types, like the 12-inch stick antenna. The base station also supports microchip programming, even after the microchip has been implanted in the animal.
- Two antenna ports - switch between the internal and external antenna ports at the unit.
- Flexible reach - the base station includes a 6-foot attachable antenna wand; a Square Antenna Wand or 12-inch Stick Antenna is available for other setups.
- Programming when needed - with PiSuite Provisioning Software, you can write human-readable data to any UID microchip, inside or outside the animal.
- Made for lab work - the base station has an aluminum housing that stands up to daily use, and it can be cleaned with most common laboratory cleaning agents.
Specifications
Start with the Base Station
Every UBS-200L includes the reader and a 6-foot attachable antenna wand. Add PiSuite for programming and select an additional antenna if needed.
-
Most popular
UBS-200L Base Station
UBS-200L
- UBS-200L base station Internal and external antenna ports
- 6-foot attachable antenna wand
-
Provisioning Workstation
UBS-200L + PiSuite
- UBS-200L base station
- 6-foot attachable antenna wand
- PiSuite Provisioning Software Programs chips before or after implant
-
Additional Antenna
For a specific scan setup
- Square Antenna Wand (UA-45) 4.5-inch
- 12-inch Stick Antenna (UA-12)
- UAC-2M antenna cable Connects an external antenna
Complete the Workstation
-
Lab Workflows + ProvisioningPiSuite
- Weighing
- Measurements
- Provisioning
Lab Workflow Application: microchip provisioning, animal and study records, and hands-free weight and tumor capture from connected readers, balances, and calipers.
View PiSuite -
TemperatureUCT-2112 Temperature Microchip
- Unique ID
- Temperature
- 12.5G
2.1 × 13 mm with a ±0.1 °C temperature sensor. Returns ID and core temperature on the same scan.
View UCT-2112 -

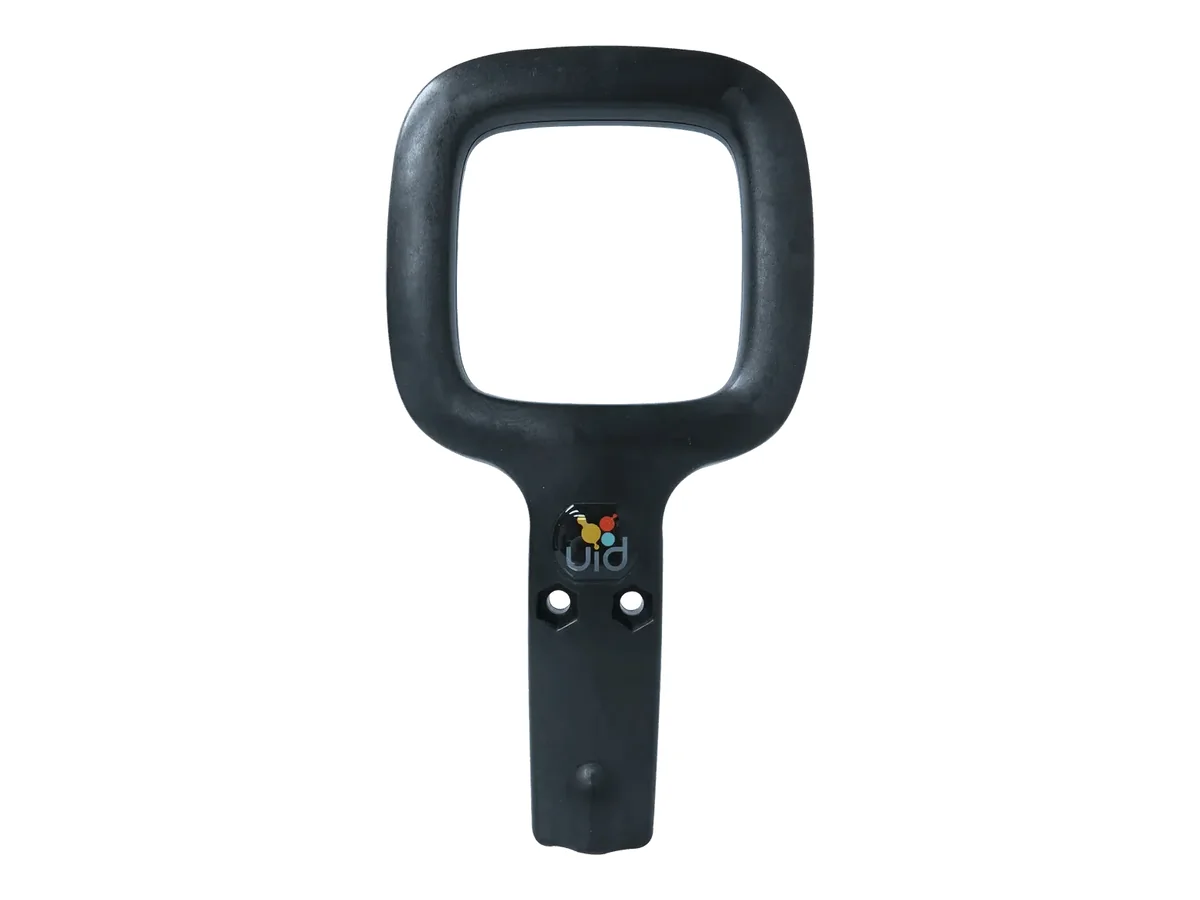

Antenna AccessorySquare Antenna Wand
- 4.5" Square
- 4–8 cm range
The 4.5-inch square wand for scanning an animal in hand. Connects to the base-station reader via the UAC-2M antenna cable.
View Square Antenna Wand
Common Questions
-
What is provisioning, and why does it matter?
Provisioning is the process of writing study information, such as a study number, genotype, cohort code, or date of birth, onto a UID microchip. With the PiSuite Provisioning Software, the UBS-200L can program microchips, either in the cannula or in the animal.
-
Can it program a chip that is already implanted?
Yes. With PiSuite Provisioning Software, the UBS-200L can program UID microchips after they have been implanted, while the chip is in the animal.
-
Should I choose the UBS-200L or the UPS-60 for programming?
Both use PiSuite Provisioning Software to program microchips. The UPS-60 programs up to six microchips in their cannulas before implant. The UBS-200L is the option for programming after implant and also serves as a desktop reader.
-
How does data get to our software?
Connect the UBS-200L to a PC by USB or serial, and each read passes to the software running on that PC. To confirm a particular LIMS, database, or workflow, contact UID before ordering.
-
How do the two antenna ports work?
The UBS-200L has two antenna ports, one internal and one external. You switch between them at the unit, so you can change antenna types as the task changes. The reader ships with a 6' attachable antenna wand. The Square Antenna Wand and 12-inch Stick Antenna connect the same way when a setup calls for a different reach.
-
How is it different from the URC-500 console reader?
The UBS-200L is a desktop reader for a procedure table, mobile cart, or other fixed scan point, and it can program microchips with PiSuite. The URC-500 is a fixed console reader for longer-range, multi-antenna, and custom deployments, and it does not program microchips.
Not Sure Which Reader Fits Your Lab?
Tell us what you're scanning and whether you'll be programming chips, and we'll help you choose the best reader for your setup.
