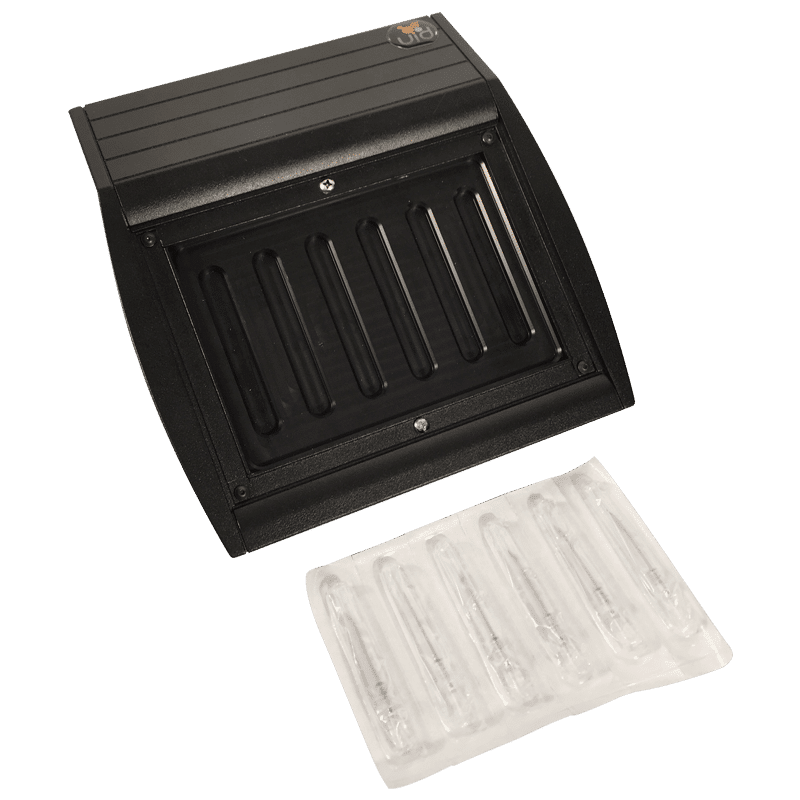

UPS-60 Chip Provisioning Station
The UPS-60 is UID's high-volume provisioning station. Load up to six chips, still sealed in their cannulas, and write your own study data using UID's PiSuite software to each one before implant day.
- 6 chips at once
- Program in the needle
- Runs on PiSuite
Batch-Prep a Whole Cohort Before Implant
Program the chips before you ever get to the procedure room. Load the sealed cannulas, enter your study data, and program every chip without it ever leaving its needle.
- Six at a time — program up to six UID microchips in a single cycle.
- Your own 16 characters — write a study number, cohort, or genotype of your choice prior to implantation.
- In the sterile cannula — program each chip directly in the cannula, without breaking sterility.
- Fast and secure — reliable programming across a full study cohort.
- Confirmed at the scan — verify the data when you scan the animal with a UID RFID reader.
UID microchips don't lose their programmed information the way other companies' chips can. You can also reprogram a chip after implantation, while it's in the animal, with the UBS-200L base station.
Specifications
You'll Likely Also Need
-
Base StationUBS-200L Base Station Reader
- 4–8 cm range
- Provisioning
High-powered base station reader that also programs microchips via the PiSuite Provisioning Software. 4–8 cm read range and two switchable antenna ports.
View UBS-200L -
Lab Workflows + ProvisioningPiSuite
- Weighing
- Measurements
- Provisioning
Lab Workflow Application: microchip provisioning, animal and study records, and hands-free weight and tumor capture from connected readers, balances, and calipers.
View PiSuite -
All SpeciesUC-2112 Implantable Programmable Microchip
- Unique ID
2.1 × 13 mm in a 12.5G sterile cannula. The standard programmable RFID microchip for rats and larger species.
View UC-2112 -
Provisioning serviceCustom Programmed Microchips
- Programmed before shipping
- Sterile in the cannula
Send us your study data and we'll program and label your microchips before they ship in sterile cannula that are ready for implant, with no additional provisioning required.
View Custom Programming
Common Questions
-
What does the UPS-60 do?
It writes your own data to UID microchips before they are implanted. Load up to six chips, still sealed in their cannulas, type in a study number, cohort, or genotype, and the UPS-60 writes that string to each chip. It runs on UID's PiSuite Provisioning Software.
-
How many chips can it program at once?
Up to six microchips per cycle. That is what makes the UPS-60 the high-volume option: you can batch-prep a full cohort instead of programming one chip at a time.
-
Do the chips have to come out of their needles?
No. The UPS-60 programs each chip while it stays sealed in its cannula, so sterility is preserved right up to the moment you load the injector.
-
Which UID microchips can it program?
All of them. Every UID microchip carries the same 16-character programmable field, so a single UPS-60 covers your whole colony.
-
How is the UPS-60 different from the UBS-200L?
Both program UID microchips. The UPS-60 programs up to six chips at once, before implant. The UBS-200L base station programs a chip after it is already in the animal, one at a time. Many labs run both: the UPS-60 for pre-implant cohort prep and the UBS-200L for changes made mid-study.
-
What software do I need?
The UPS-60 pairs with UID's PiSuite Provisioning Software, where you enter the data that gets written to each chip.
-
Can the programmed data be lost or changed later?
The data persists for the life of the implant and reads back the same on any UID reader in any facility. The only way to change it is through UID's software, with a UPS-60 or UBS-200L; operator intent is required to overwrite a chip.
Prepping a Full Cohort of Programmable Microchips?
Give us a call and we'll help you scope the right provisioning setup for your lab.
