Empty cartridges for self-loading the Multi PIT Tag Injector.
An empty cartridge for loading your own 2.1 mm × 12 mm ISO 11784/11785 PIT tags into the UMTI-10 Multi PIT Tag Injector. Each cartridge holds up to 10 tags and feeds them through the injector for high-throughput tagging in the field. Sold in boxes of 10.
- Holds up to 10 tags
- For 2.1 × 12 mm FDX-B
- Box of 10

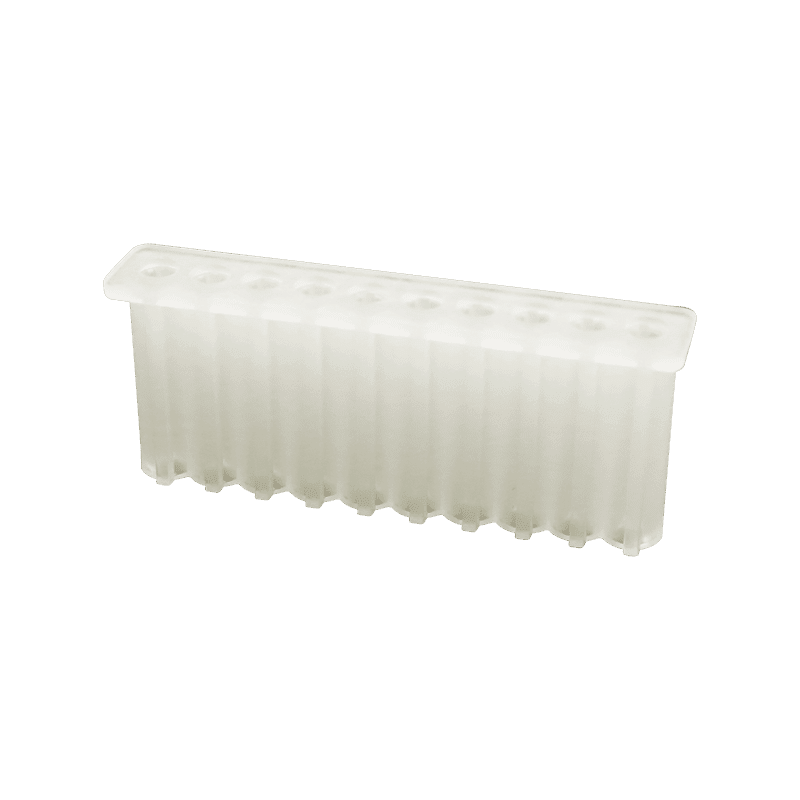

A consumable that turns the injector into a 10-tag tool.
The Multi PIT Tag Injector is built around a swappable cartridge. Drop a loaded cartridge into the injector, and you can tag ten animals in sequence without breaking down to reload between each one — useful when you're moving through a holding tank, a trap line, or a stream survey on a tight clock. Empty cartridges let you load your own 2.1 × 12 mm tags ahead of a field day, prep a batch of spares, or keep different tag groups separated by cartridge. They're shipped empty so you control the loading workflow and any sterilization step your protocol calls for.
Specifications
Compatibility
- Injector
- Multi PIT Tag Injector (UMTI-10)
- Tag size
- 2.1 mm × 12 mm FDX-B
- Tag standard
- ISO 11784/11785
Capacity
- Tags per cartridge
- Up to 10
- Cartridges per box
- 10
Physical
- Dimensions (per cartridge)
- 2 in × 2.5 in × 1 in
- Weight (per cartridge)
- 0.1 lb
Loading & sterility
- Ships
- Empty — load on-site
- Sterility
- Sterilize loaded cartridge per your tagging protocol
You'll likely also need
-
The injectorMulti PIT Tag Injector — UMTI-10
Ten 2.1×12 mm FDX-B PIT tags per cartridge, one trigger pull each. A reloadable, reusable field injector for high-throughput fish, wildlife, and herpetofauna tagging.
View injector → -
The tagsFDX PIT Tag — 2.1×12 mm
The workhorse FDX-B PIT tag — 2.1 mm × 12 mm, ISO 11784/11785 compliant, ICAR certified. The standard size for adult fish, small mammals, and most field studies.
View tag → -
Replaceable needlesPIT Tag Injector Needle
Replaceable triple-ground injection needle for the UMTI-10 Multi PIT Tag Injector. Built to ease insertion and minimize tissue trauma during microchip implantation. Box of 10.
View needle →
Frequently asked questions
-
Which injector is this cartridge compatible with?
The UMTI-10 Multi PIT Tag Injector. The cartridge is designed for that injector's feed mechanism — single-shot injectors use a different format. If you're tagging with anything other than the UMTI-10, contact us before ordering.
-
Do I need to sterilize the cartridge before loading?
Cartridges ship empty and unsterilized. Sterilization is part of your tagging protocol, not the cartridge spec — most studies sterilize the cartridge along with the loaded tags using their standard method (autoclave, chemical bath, or ethylene oxide depending on the lab). Follow your IACUC or permit protocol.
-
How many tags fit in each cartridge?
Up to 10 of the 2.1 × 12 mm FDX-B PIT tags. Each box ships with 10 empty cartridges, so a single box gives you capacity for 100 tags' worth of pre-loaded magazines.
Need to pair these with an injector or a batch of tags?
If you're spec'ing a full PIT-tagging setup — injector, cartridges, and tags together — talk to us before placing separate orders. We can confirm compatibility, bundle pricing, and shipping timing in one pass.
