Temperature Monitoring · Rack-Scale

AnyCage+

Continuous identification and temperature monitoring for large cohorts. Collect and analyze animal temperature data for 96+ cages with DataCollector or VivoTraq software.

TemperatureActivity
Schedule a DemoLet's Talk

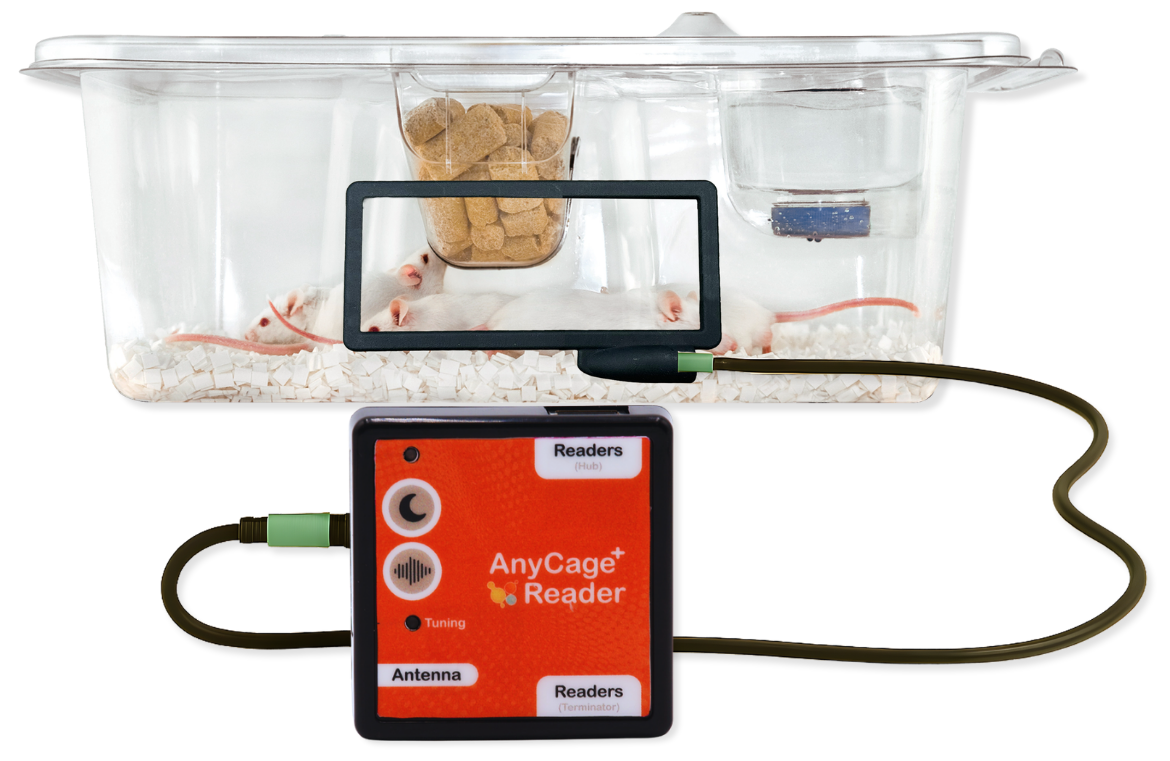

Mice in a home cage with AnyCage+ reader mounted on the side

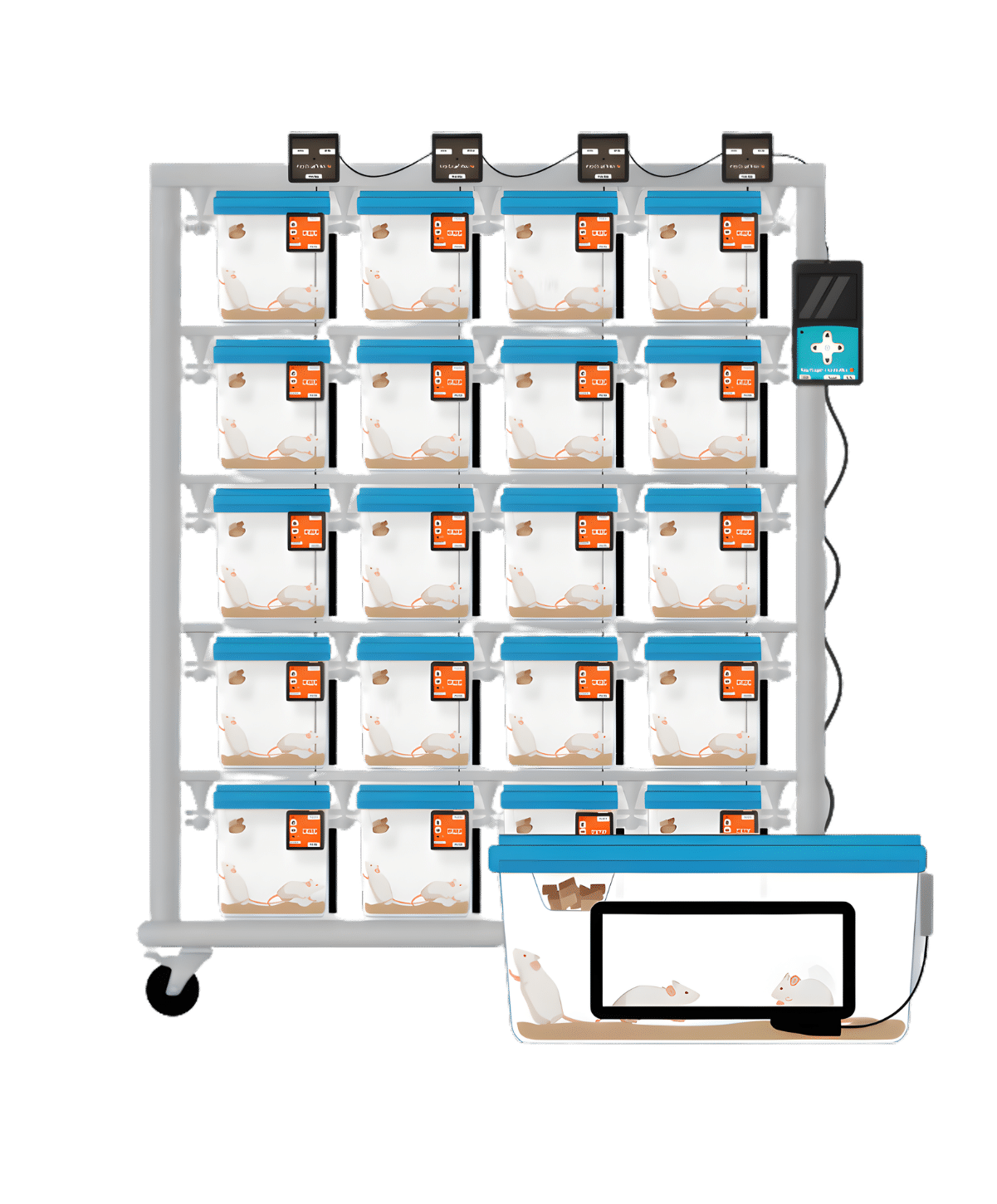

AnyCage+ rack-scale temperature monitoring system
Product Overview

Designed for the Scale of Modern Research Operations

AnyCage+ provides rack-scale home cage monitoring for facilities running large cohorts or multi-cage operations. Where AnyCage Lite handles individual cages, AnyCage+ covers entire racks from a single controller, delivering continuous animal temperature data without disruption.

At the heart of the system is a controller-based architecture that aggregates data from every cage antenna. Collect data locally or stream in real-time to the VivoTraq cloud for remote dashboard access and automated alerts without on-site presence.

Key Capabilities

Everything Needed for Rack-Scale Monitoring

AnyCage+ combines hardware, software, and cloud infrastructure into a single deployable system — no custom integration required.

  • Rack-scale capacity

    Monitor up to 96 cages per system. Designed from the ground up for high-density IVC racks and large study cohorts requiring simultaneous, continuous coverage.

  • Real-time insights with VivoTraq Cloud

    Stream continuous temperature data to a local server or the VivoTraq cloud for remote dashboards, automated alerts, and multi-site collaboration.

  • Clip-mount antennas

    Antennas mount magnetically or with rack-specific clips — no tools, no adhesive, no rack modifications. Available in 2″×5″ rectangular and 3″ round formats.

  • No PC required — IT-free deployment

    Self-contained controller aggregates data from every antenna on the rack — no per-cage computer, no IT ticket, no custom middleware. Plug in, connect to your network, and start streaming.

  • ±0.1°C accuracy

    UID UCT-2112 temperature-sensing microchips deliver lab-grade temperature readings across 30–46°C — the full physiological range for rodent research.

  • IACUC-aligned welfare

    Non-invasive, undisturbed monitoring supports the 3Rs refinement principles and provides a documented record of refined-care compliance across all monitored animals.

Data Quality

Individual Animal Resolution at Rack Scale

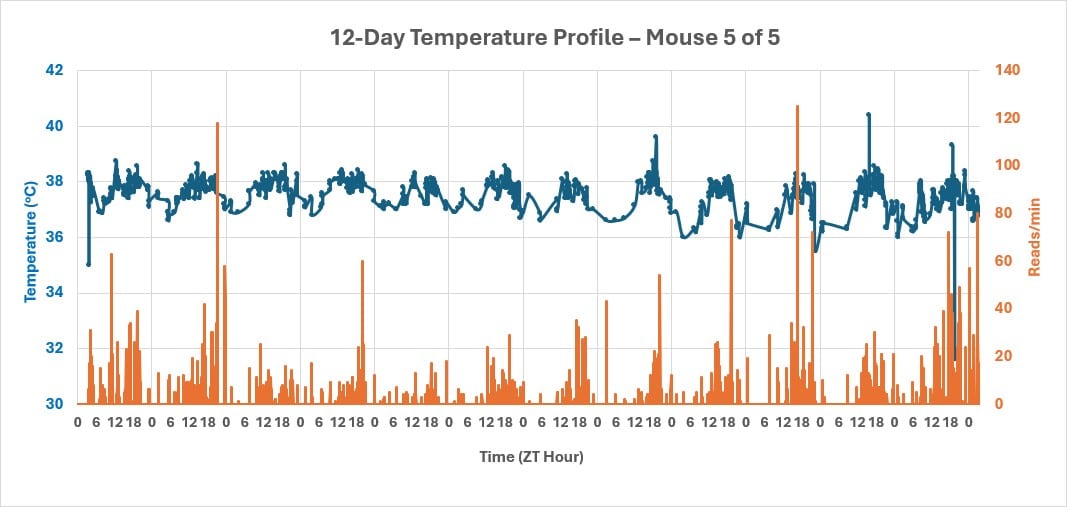

Temperature data chart recorded over 12 days from Mouse 5 of five group-housed mice using a single rectangular antenna
Figure Temperature data recorded over a 12-day period from Mouse #5 (of five housed in a shared cage) using a single rectangular antenna mounted to the side of the cage. Each data point represents a continuous, non-invasive body temperature read via the implanted UID UCT-2112 microchip.
Data Collection Options

Your Data, Your Way

Choose what fits your workflow, and upgrade anytime.

  1. AnyCage+ Controller

    Plug in and go. No IT required. Slide a USB drive into the system and pull your data straight off — no software to install, nothing to approve. Data collection pauses while you export, then resumes on its own.

  2. Data Collector

    Install once, then it runs. Minor IT: a lightweight PC application installs one time and automatically uploads data from the system — no manual transfers, no USB shuffling. The system keeps collecting while it uploads.

  3. VivoTraq

    Cloud access, anytime. Moderate IT: see your data 24/7 from any device, with threshold alerts by email or phone and built-in time-series graphing. Uploads happen automatically from the system — nothing to fetch.

At a Glance

How the Options Compare

Start simple, and upgrade when you're ready.

Feature AnyCage+ Controller Included · IT needed: None Data Collector PC app · IT needed: Minor VivoTraq Cloud · IT needed: Moderate
Works without software or internet Yes Not available Not available
System stays active while exporting Not available Yes Yes
Automatic data uploads Not available Yes Yes
Temperature trend graphing Not available Not available Yes
Real-time threshold alerts Not available Not available Yes
Access from any device, anywhere Not available Not available Yes
Pricing & Kits

Modular Kits Scale with Your Lab

Start with the 8-cage starter kit and expand incrementally with smaller add-on kits as your cohort grows.

AnyCage+ 8-Cage Starter Kit

Everything needed to start monitoring up to 8 cages

The starter kit includes the AnyCage+ controller and enough hubs, readers, and antennas to monitor 8 cages. Add expansion kits as needed to scale to full rack-scale deployments (96+ cages).

Kit includes
  • 1× AnyCage+ Controller
  • 1× Hub
  • 8× Readers
  • 8× Antennas (2″×5″ rectangular or 3″ round)
  • UID UCT-2112 temperature microchips sold separately (contact for volume pricing)
Request Quote

Smaller study? Start with AnyCage Lite.

Expansion Kits & Components

Add capacity as your cohort grows

  • 8-Cage Expansion Kit
    1 Hub · 8 Readers · 8 Antennas
  • 4-Cage Expansion Kit
    1 Hub · 4 Readers · 4 Antennas
  • 2-Cage Expansion Kit
    2 Readers · 2 Antennas
  • Controller (individual)
Contact Sales
Product Comparison

Choose the Right System for Your Study

All three platforms share the same UID UCT-2112 microchip ecosystem. Your choice depends on study size, data needs, and infrastructure.

Feature AnyCage Lite Individual cages · Small studies Current product: AnyCage+ Rack-scale · Large cohorts Mouse Matrix Activity and physiological data
Monitors Temperature Temperature Temperature + Activity + Location
Ideal for Single cages, small studies Rack-scale, large cohorts Detailed activity and physiological data
Scalability Up to 8 cages Up to 96 cages per system Up to 48 per system
Animals tracked Individual or group-housed up to 5/cage Individual or group-housed up to 5/cage Individual or group-housed up to 5/cage
Monitoring rate Continuous (when connected to PC) Continuous Continuous, each zone scanned every 100–250 ms
Mount Magnetic or clip mount Magnetic or clip mount Plate under cage
Connectivity USB + PC Controller, Hubs, Readers Controller, PoE switch, PC
Temp accuracy ±0.1°C (30–46°C) ±0.1°C (30–46°C) ±0.1°C (30–46°C)
Microchip UID UCT-2112 UID UCT-2112 UID UCT-2112
Software DataCollector VivoTraq Mouse Matrix App
In Detail

See the system up close

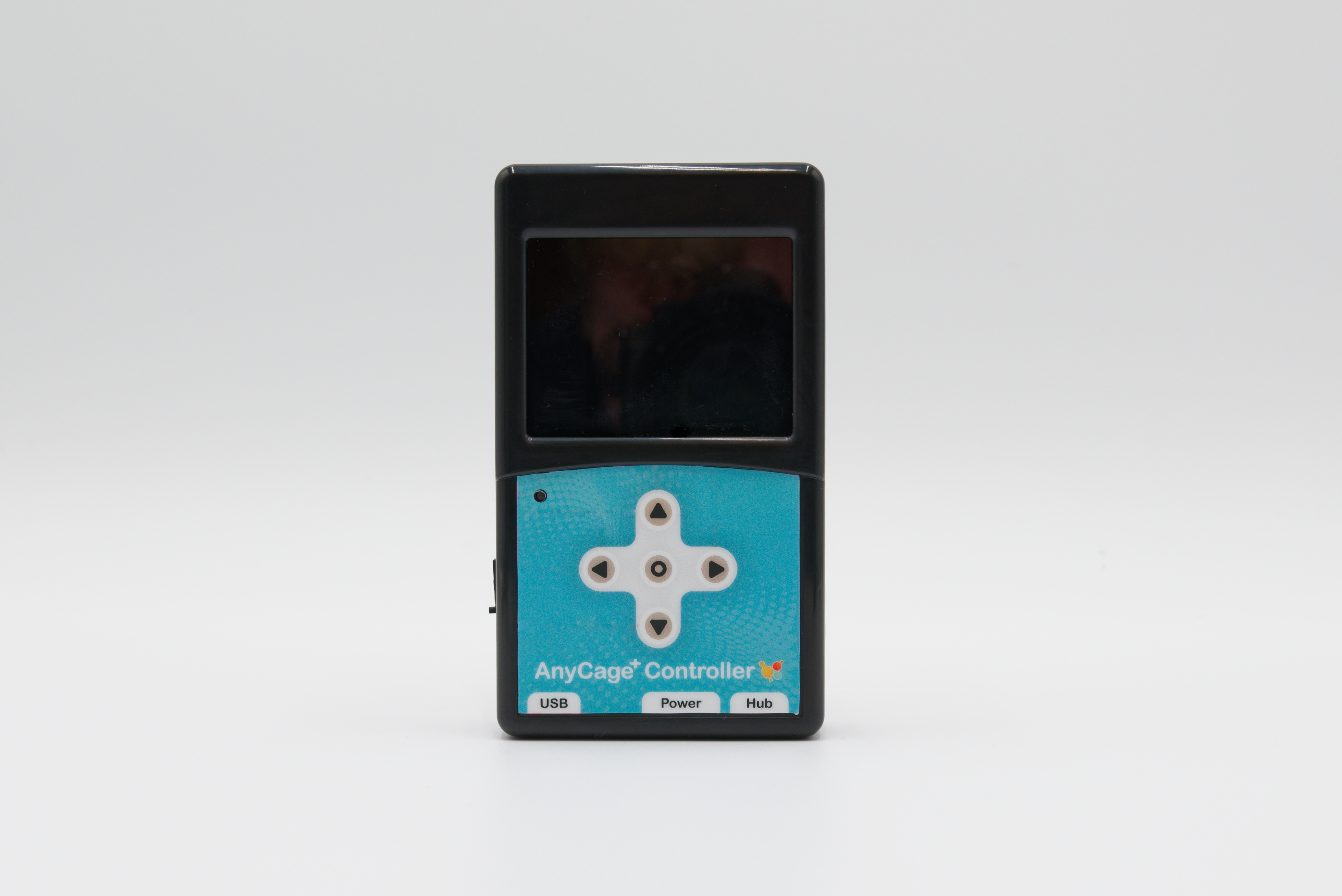

AnyCage+ controller unit, studio shot
AnyCage+ Controller The central brain of the system. Aggregates temperature data from every hub on the rack and streams it to the VivoTraq cloud or your local server in real time.

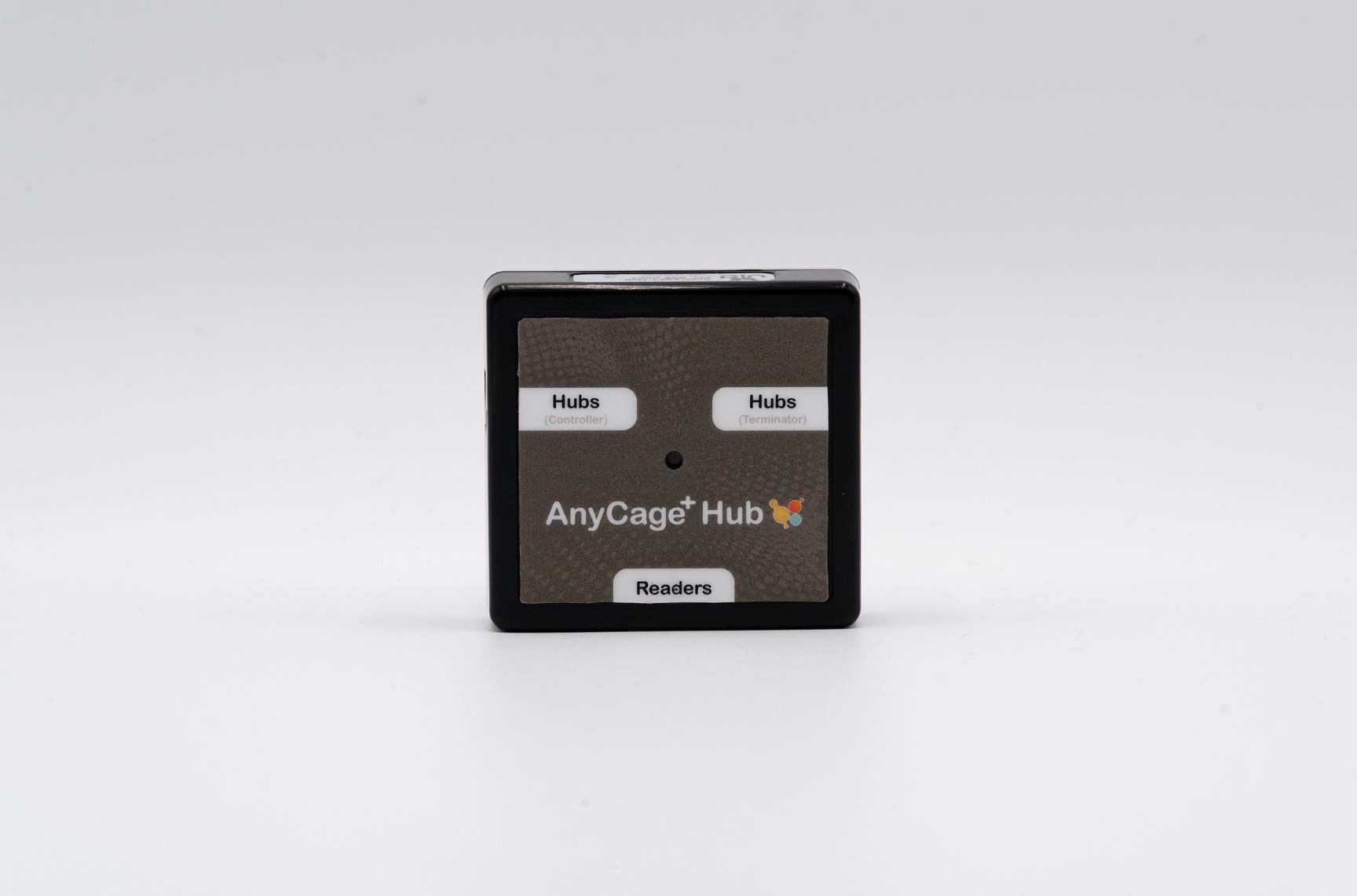

AnyCage+ hub unit, studio shot
AnyCage+ Hub Connects up to eight readers per unit and passes their data to the controller. Hubs mount directly to the rack and daisy-chain to scale with your deployment.

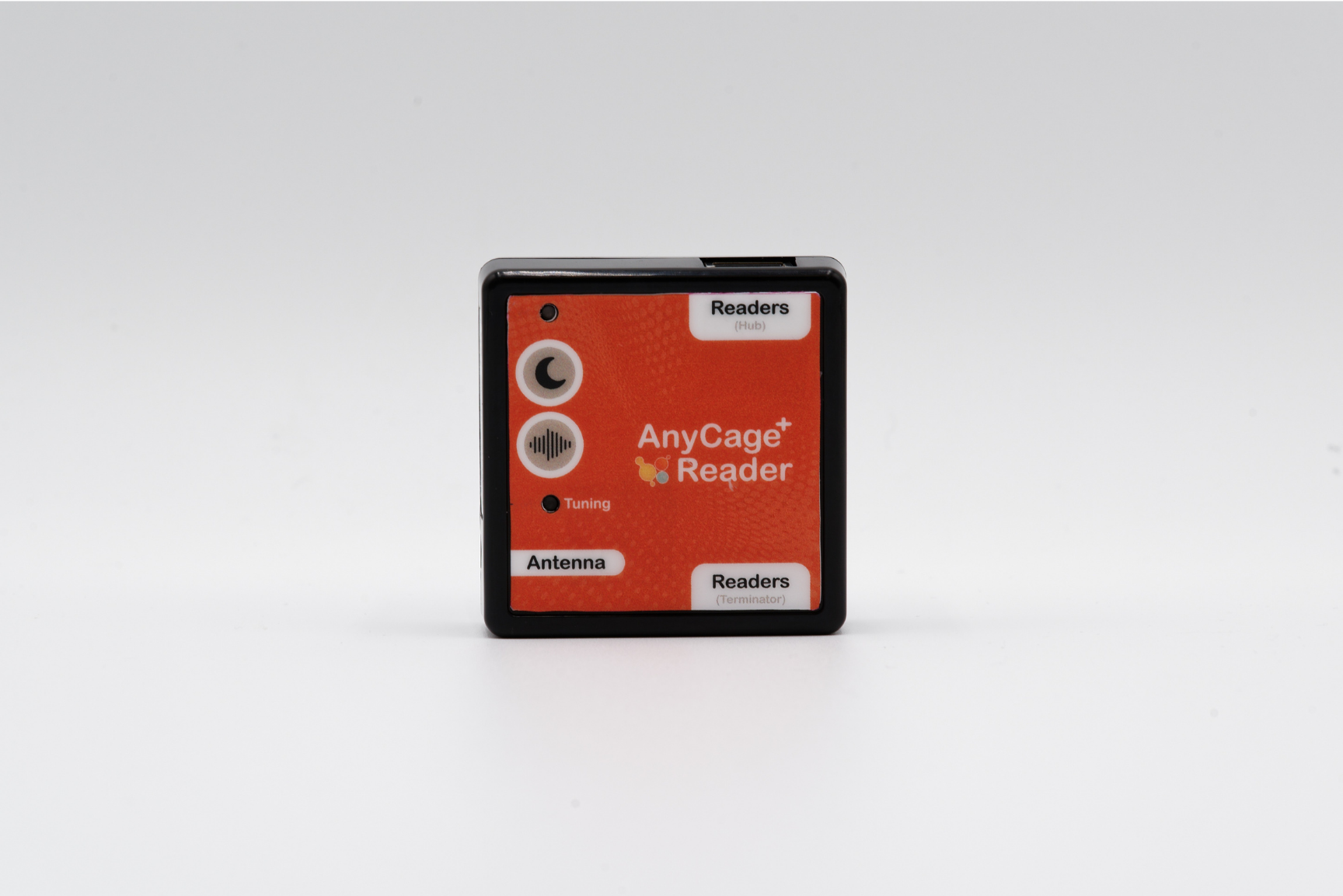

AnyCage+ reader unit, studio shot
AnyCage+ Reader One reader per cage. Powers the antenna and captures each animal's ID and ±0.1°C body temperature in every scan, 24/7.

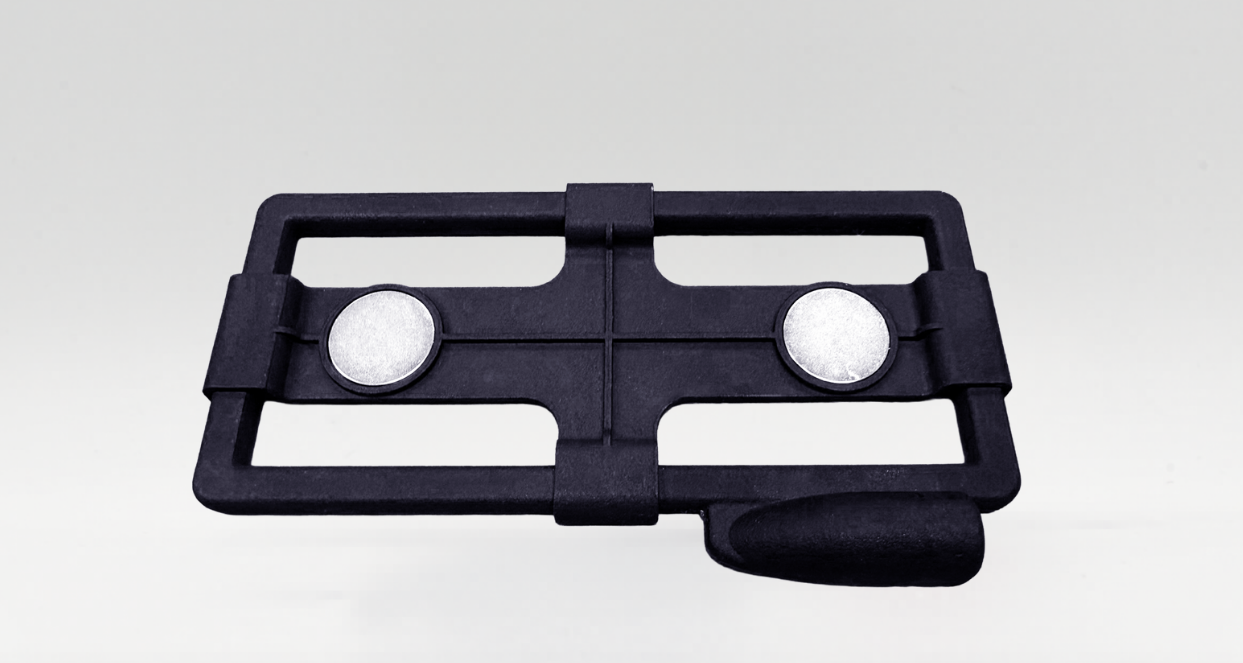

AnyCage+ rectangular antenna, studio shot
Rectangular Antenna (2″×5″) The standard antenna for most IVC cages. Attaches magnetically or via rack-specific clips to the side of the cage — no adhesive, tools, or rack modification required.

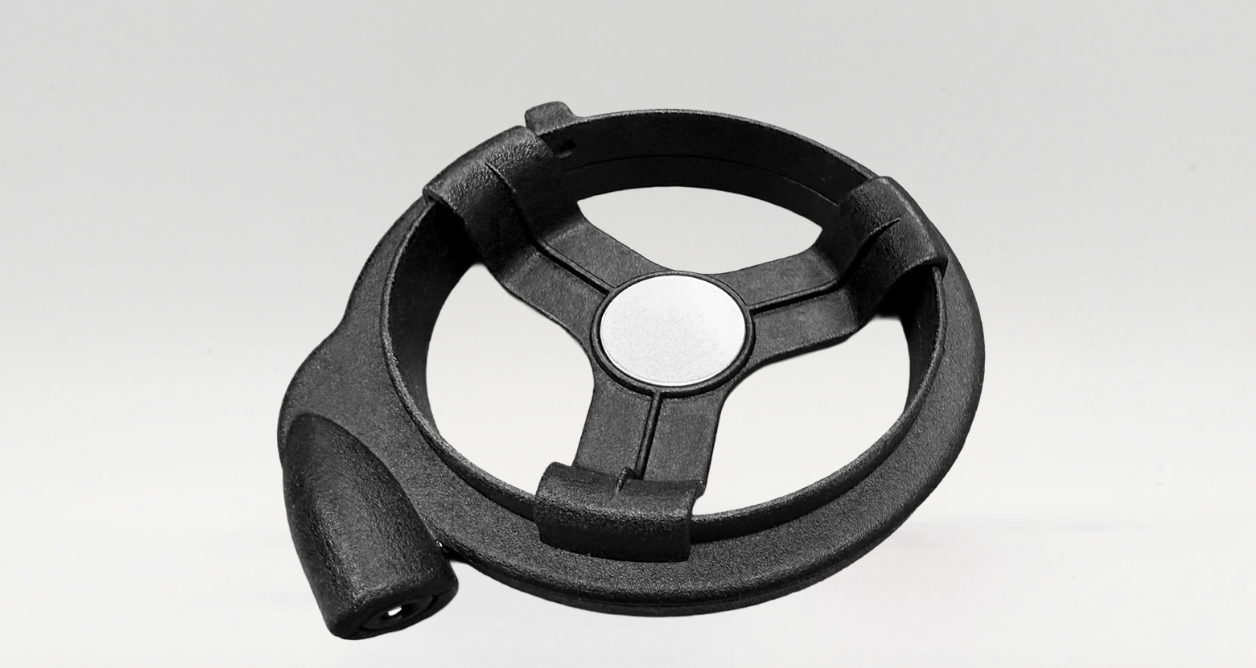

AnyCage+ round antenna, studio shot
Round Antenna (3″) An alternate antenna format for cage tops or alternate rack configurations. Mounts magnetically or with rack-specific clips, same as the rectangular variant.
VivoTraq application icon
VivoTraq Software Cloud-connected dashboards stream continuous temperature data from every cage to researchers anywhere. Automated alerts, remote monitoring, and one-click export — no on-site presence required.
