Description

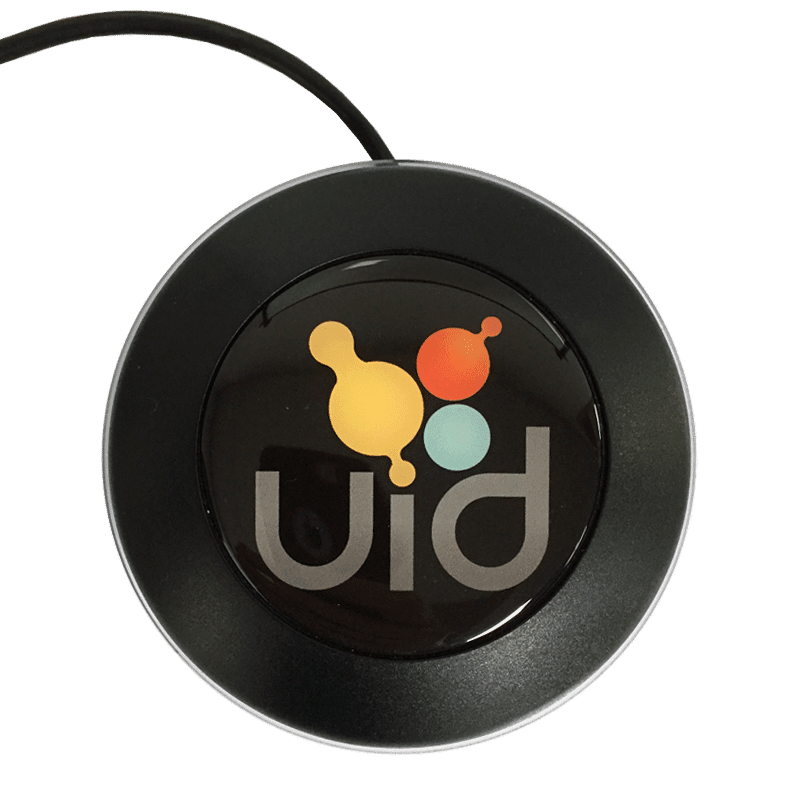

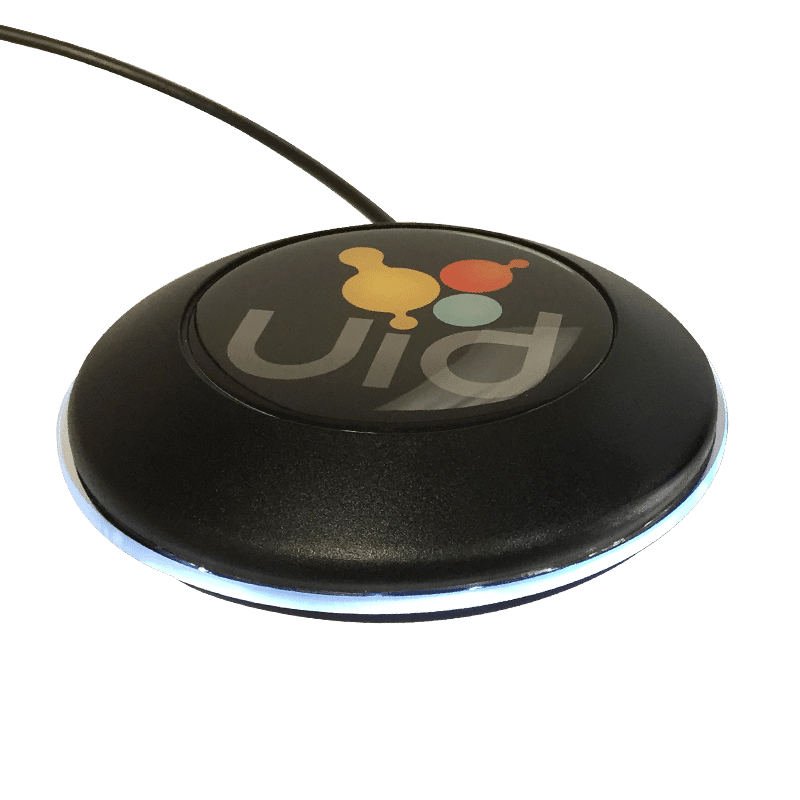

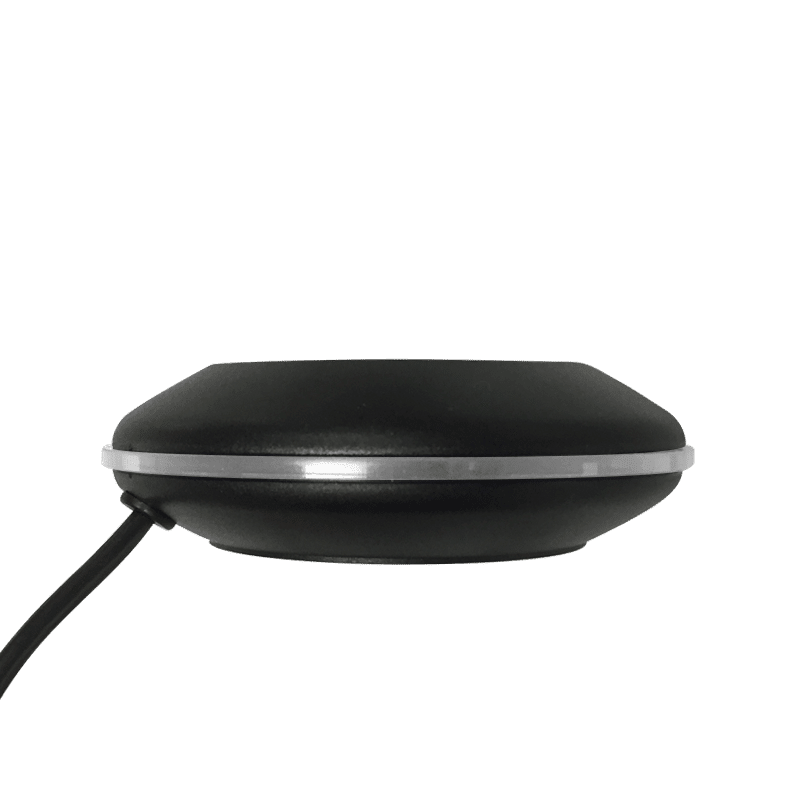

The UID Low Frequency Desktop Reader (UDT-100L) combines the functionality of a handheld reader in a stationary desktop model. This desktop reader connects directly to a PC via USB or HID interface for simple communication with any software platform. The LF Desktop Reader is compatible with UID transponders, and other transponders (ASK, ISO FDX-B, ISO HDX, and PSK modes) that broadcast information in the 125 kHz and 134.2 kHz frequencies. The LF Desktop Reader features a white light ring that illuminates when powered and flashes when a microchip is present. This simple and low-cost transponder/microchip reader is ideal for laboratory animal identification, as well as for pet or wildlife identification applications.
Summary of Features and Specifications:
- Desktop reader
- Compatible with all UC-Series of UID microchips
- Recommended species: mice, rats
- Recommended Routes: SC (mice, rats), IP (mice)
- Microchip programming: NO
- Reads temperature data (UCT-2112 Temperature Microchip): YES
- For use with UBS-200 Base Station or UBC-600 Base Console
- Connects to PC via USB cable or HID interface
- HID Keyboard: YES
- Read range: 3-4cm
- Size: 110mm diameter x 30mm height
- White LED light indicator
- Power: POE
- Frequency: 124 kHz, 134.2 kHz
- Reading systems: ASK, ISO FDX-B, ISO KDX, PSK
